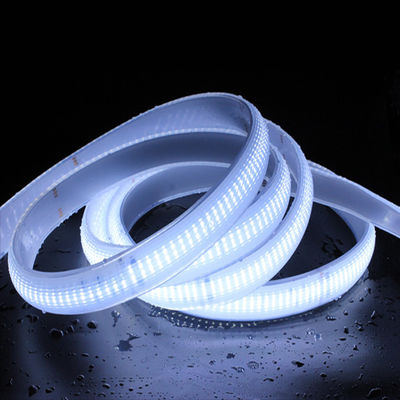

BK-LS280-220V(W) NEW Design Double led chip High illumination LED strip lighting for harsh environment lighting
| Place of Origin | China |
|---|---|
| Brand Name | BOUKIN |
| Certification | CE ICEX ATEX |
| Model Number | BK-LS280-220V(W) |
| Minimum Order Quantity | Negotiate/sample |
| Price | Negotiate |
| Packaging Details | standard gift package |
| Delivery Time | samples order in 3-5 days, bulk order in 15-25 working days |
| Payment Terms | T/T |
| Supply Ability | 5000M-10000M/month |
Product Details
| Outer Material | Super Toughing Silicone Gal | Color Of Lighting | White |
|---|---|---|---|
| Light Source | Epistar 5050 | LED Configuration | 280LEDs/m |
| Voltage On Lighting VAC | 210-230 VAC | Color Temperature | 5000-6500kelvin |
Product Description
2nd Generation Industrial Led Rope Strip Lighting With Double Row LEDs
2nd Generation Strip Lighting with double row LEDs
The strip light use super toughening silica gel soft overmolding process, the outlet end with a mould
injection waterproof connector, waterproof power supply, effectively enhance the waterproof
performance of products, LED strip light outsourcing silicone elastomer with good flame retardancy, and
has a certain impact resistant, High brightness with long working time. this strip light is used for dust,
humidity, rain, tremors, compressive environment and under the environment of corrosive gas lighting.
Basic specifications
- LED Chip: Epistar
- LED configuration: 144LEDs spaced evenly over a metre length
- Range fed from both sides: 20metres
- Recommended fixing height: 5-6 metres
- IP Rating: IP68
- Power consumption per LED: 0.25 Watts
- Power consumption per metre: 12 Watts
- Colour rendering index CRI: >80
- Colur temperature: 5000-6500kelvin
- Luminous flux: 2000 Lum / m
- Voltage on lighting VDC: 220V
- Temperature for storage and transportation: +-40℃
- Life span: 5 years+
- Warranty lighting: 1 years
- Outer covering: Food grade silicons
- Dimensions: mm(length) * mm(width) * mm(height)
- Tensile strength: +- 50KG
- Operating temperature: -40 / +80 ℃
- Relative humidity,%, at a temperature of + 40 ° C: - till 100%
- Dustiness of ambient air: no more 1000 mg/m3
- Rated supply voltage: 220V(preferably switchable)
- Lighting angle: 180 degree
- MTBF: 45000 H
- Degradation of luminous flux: 5-7% / year
- protection against dust and moisture: IP68
- Protection: Short circuit , Over temperature , Over Voltage , Over current, Surge and surge protection
TECHNICAL PARAMETERS:
| Part Number | BK-SL144-220V(A) |
| LED Chip | Epistar |
| LED configuration | 144 LED's spaced evenly over a metre length |
| Range fed | 100 metres |
| Recommended fixing height | 5 - 6 Metres |
| IP Rating | 68 |
| Power Consumption per LED | 0.23 Watts |
| Power Consumption per Metre | 33 Watts |
| Colour Rendering Index CRI | > 80 |
| Colour temperature | 6500 Kelvin |
| Flux (lm) | 2362 Lumens / M |
| Voltage on lighting VAC | 220-230 VAC |
| Light maintenance | 15%-20% Drop over 4 years |
| Lifespan | 5 Years |
| Warranty Lighting | 3 Years |
| Outer covering | Food grade silicone |
| Dimensions | 10000mm(length) *20mm(width) *10mm(height) |
| Tensile strength | +-50KG |
| Operating temperature | -40℃ to 120℃ |
| Protection | Short Circuit Over Voltage Over temperature Over Current |
Installation length introduction of heavy duty led strip lights:
Accessories of LED strips lighting:
LED Flexible Strip Lights Pictures
About packing
LED Lighting Solutions
We are passionate about providing our customers with safe, robust, durable lighting solutions purpose built for mining, tunnelling, oil and gas environments. Our superior product quality, service commitment and technical expertise has been setting us apart for over 6 years.
All products are created with safety in mind. Designed for tough working conditions. Proven to last the distance with all of our original customers, since 2014, still using the same lighting initially installed!
FINANCIAL COMPARISON
STRIP LIGHT SAVES YOU MONEY
From conceptual design to full production, LED strip lighting is the only lighting system worldwide which is proven to save considerable CAPEX and OPEX by its implementation and is known by its clients as the most cost effective underground lighting solution available.
Because strip light is a zero-maintenance long warranty product, there are a no costs whatsoever required to maintain its functionality and when compared to actual data obtained from various mines maintenance costs, the implementation of HALO has an average return on investment of only one year, thereafter converting those original maintenance costs into massive savings, it is by far the most educated choice for forward thinkers as a cost-effective lighting solution for the mining sector.
MAINTENANCE COMPARISON
STRIP LIGHT LASTS LONGER
Every design facet of Heavy duty Strip Light is carefully & meticulously considered & engineered, to create an ultra-reliable lighting platform with an estimated lifespan of up to 10 years. It has a low profile of only 4mm and very robust design, which makes it almost impervious to external mechanical damage unlike most other bulky lighting systems. Heavy duty Strip Light is designed to last and continues to provide outstanding performance year after year, saving massive amounts of OPEX and considerably improving underground conditions in ways never thought possible.
ERGONOMICS COMPARISON
HEAVY DUTY STRIP LIGHT LOOKS BETTER
All professional miners know and understand that the most crucial factor that has a major impact on the improvement or decline of safety, morale & productivity is lighting; a lack of it can cause a significant deterioration in these fundamental cornerstones, however, a well illuminated area with consistent & stable lighting parameters, has shown to improve significantly in these crucial areas.
Typically mines incorporate an underground lighting design that consists of light fixtures fitted evenly apart usually spaced by 5 or 10 meters. Studies have shown that this inconsistent illumination platform, with continuous variables of high bright and low light areas throughout a tunnel is not conducive to an optimally safe and productive environment, but has a strong negative affect on the workers causing glare, confusion, poor morale and lack of focus inevitably leading to compromised safety.
Heavy duty Strip Light provides a complete flood of lighting, illuminating floors, walls and even ceilings without any shadows or dark spots whatsoever. Where in the past potential dangers may have been hidden through conventional lighting systems, they are now exposed by this unique feature of Heavy duty Strip Light. Its specialised design and selective components provide the assurance of minimal lighting degradation with a projected 15% over 4 years unlike most other lighting which experience accelerated degradation of up to 50% within 5 months in the harsh underground conditions.
Q & A:
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A:Sample needs 3-7days, mass production time needs 25-30days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 200pcs.(Depends on different type battery/battery pack)
Q: 4. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.
Q: 5. How to make this payment?
A: TT, Paypal, Western Union.
Q: 6. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q: 7. Do you accept OEM/ODM?
A: Yes, it’s available.
