BK-MS72-36V(R) Single green color Waterproof IP68 Heavy duty led light strips used for special worksite

Place of Origin China
Brand Name BOUKIN
Certification CE ICCE ATEX
Model Number BK-MS72-36V(R)
Minimum Order Quantity Negotiate/sample
Price Negotiate
Packaging Details standard gift package
Delivery Time samples order in 3-5 days, bulk order in 15-25 working days
Payment Terms Western Union, L/C, T/T, MoneyGram
Supply Ability 5000M-10000M/month
Product Details
Outer Material Silicone Light Source 5050
Color Of Lighting Green Colour Rendering Index CRI >=80
LED Configuration 72LEDs/m Voltage On Lighting VDC DC36V
Leave a Message
Product Description



- For using In mines, hazardous by gas (methane) or coal dust
- Temperature for storage and transportation: ± 40 C
- Operating Temperature: - 10 / +20 C
- Relative humidity,%, at a temperature of + 40 ° C: - till 100%
- Rated supply voltage: 12V/36V/110-130V AC /220-240VAC
(preferably switchable)
- Luminous flux, Lm / m: 2000
- Color temperature, K: 3000K/4000K/5000K/6000K/7000K/10000K
- Lighting angle, degrees: 180
- Number of LEDs, pcs / m: 60-80 LEDs/m
- MTBF: 45000 H
- Degradation of luminous flux,% / year: 5-7%
- protection against dust and moisture: IP68
- LED Strip Housing Material: Silicon, flame retardant.
- Surge and surge protection
- Power driver : 240W/480W/750W


Specification :

Item Value
Model BK-SL-72-36VDC BK-HL-72-220V BK-HL-72-220V-2835
Light source SMD5050 SMD5050 SMD2835
Color white/warm white/cool white/RGB white/warm white/cool white white/warm white/cool white
Color Temperature 6000k-6500k 6000k-6500k 6000k-6500k
CRI 75 75 75
Rated Voltage DC24V/DC36V 110V -130V / 210V- 240V 110V -130V / 210V – 240V
Power/M 16W 16W 20W
LEDs/M 72 pcs leds per meter 72 pcs leds per meter 140 pcs leds per meter
Size 10mm*20mm*10m 10mm*20mm*10m 14mm*4.5mm*10m
Dimension 5m/roll & 10m/roll for options 5m/roll & 10m/roll for options 5m/roll & 10m/roll for options
Waterproof grade IP68 IP68 IP68
Protection anti-explosive, water-proof, over-current protection, voltage regulation protection anti-explosive, water-proof, over-current protection, voltage regulation protection anti-explosive, water-proof, over-current protection, voltage regulation protection

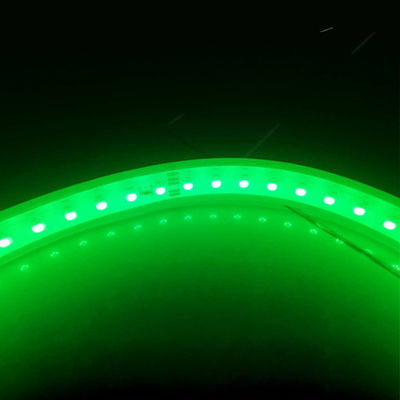

LED Flexible Strip Lights Pictures

BK-MS72-36V(R) Single green color Waterproof IP68 Heavy duty led light strips used for special worksite 0

BK-MS72-36V(R) Single green color Waterproof IP68 Heavy duty led light strips used for special worksite 1

LED Lighting Solutions
We are passionate about providing our customers with safe, robust, durable lighting solutions purpose built for mining, tunnelling, oil and gas environments. Our superior product quality, service commitment and technical expertise has been setting us apart for over 6 years.

All products are created with safety in mind. Designed for tough working conditions. Proven to last the distance with all of our original customers, since 2014, still using the same lighting initially installed!



From conceptual design to full production, LED strip lighting is the only lighting system worldwide which is proven to save considerable CAPEX and OPEX by its implementation and is known by its clients as the most cost effective underground lighting solution available.
Because strip light is a zero-maintenance long warranty product, there are a no costs whatsoever required to maintain its functionality and when compared to actual data obtained from various mines maintenance costs, the implementation of HALO has an average return on investment of only one year, thereafter converting those original maintenance costs into massive savings, it is by far the most educated choice for forward thinkers as a cost-effective lighting solution for the mining sector.



Every design facet of Heavy duty Strip Light is carefully & meticulously considered & engineered, to create an ultra-reliable lighting platform with an estimated lifespan of up to 10 years. It has a low profile of only 4mm and very robust design, which makes it almost impervious to external mechanical damage unlike most other bulky lighting systems. Heavy duty Strip Light is designed to last and continues to provide outstanding performance year after year, saving massive amounts of OPEX and considerably improving underground conditions in ways never thought possible.


All professional miners know and understand that the most crucial factor that has a major impact on the improvement or decline of safety, morale & productivity is lighting; a lack of it can cause a significant deterioration in these fundamental cornerstones, however, a well illuminated area with consistent & stable lighting parameters, has shown to improve significantly in these crucial areas.
Typically mines incorporate an underground lighting design that consists of light fixtures fitted evenly apart usually spaced by 5 or 10 meters. Studies have shown that this inconsistent illumination platform, with continuous variables of high bright and low light areas throughout a tunnel is not conducive to an optimally safe and productive environment, but has a strong negative affect on the workers causing glare, confusion, poor morale and lack of focus inevitably leading to compromised safety.
Heavy duty Strip Light provides a complete flood of lighting, illuminating floors, walls and even ceilings without any shadows or dark spots whatsoever. Where in the past potential dangers may have been hidden through conventional lighting systems, they are now exposed by this unique feature of Heavy duty Strip Light. Its specialised design and selective components provide the assurance of minimal lighting degradation with a projected 15% over 4 years unlike most other lighting which experience accelerated degradation of up to 50% within 5 months in the harsh underground conditions.
